How to Measure Fascia and Soffit Boards (Without Getting It Wrong First Time)

Most people searching how to measure fascia and soffit think it’s just a case of grabbing a tape measure and working around the house.

In reality, that’s only half of it.

Where most people go wrong isn’t the measuring itself — it’s not understanding how the boards actually fit, what they really cover, and what gets missed when ordering.

I’ve seen it plenty of times:

Boards turning up too small.Boards too big and getting cut down on site.Jobs delayed because something simple was overlooked.

And the frustrating bit is…

👉 it’s all avoidable

You obviously need your total run — there’s no getting away from that.

Walk around the house, measure everything properly. Front, back, sides, gables, any returns. Add it up and stick another 10% on so you’re not caught short.

Because the last thing you want is to be one board short at the end of the job…

👉 and then you’re paying delivery again because the order drops under the free carriage threshold

How to measure fascia and soffit

Where it actually goes wrong is the depth.

This is the part most people miss when looking up how to measure fascia and soffit, and it’s the bit that causes all the headaches.

You measure, say, 150mm… and assume you need a 150mm fascia.

Sounds right. It isn’t.

The bit no one explains properly

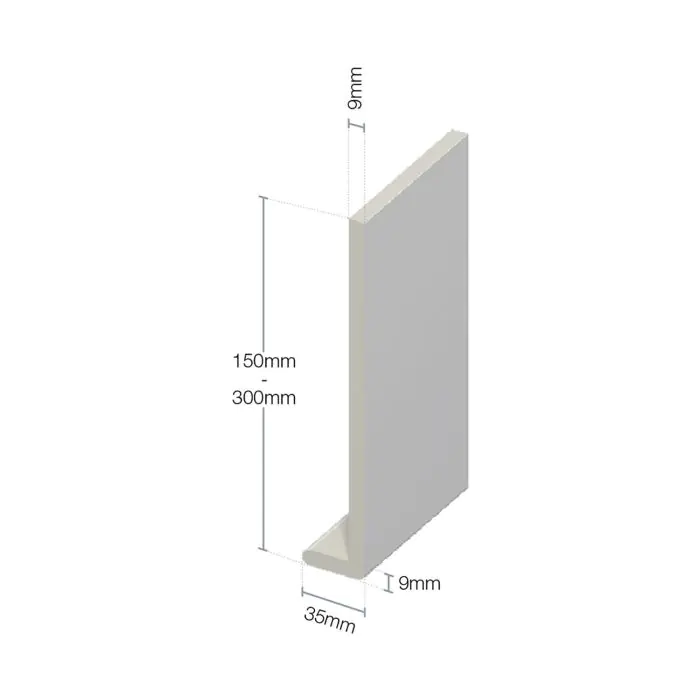

Eurocell Capping Board Dimensions

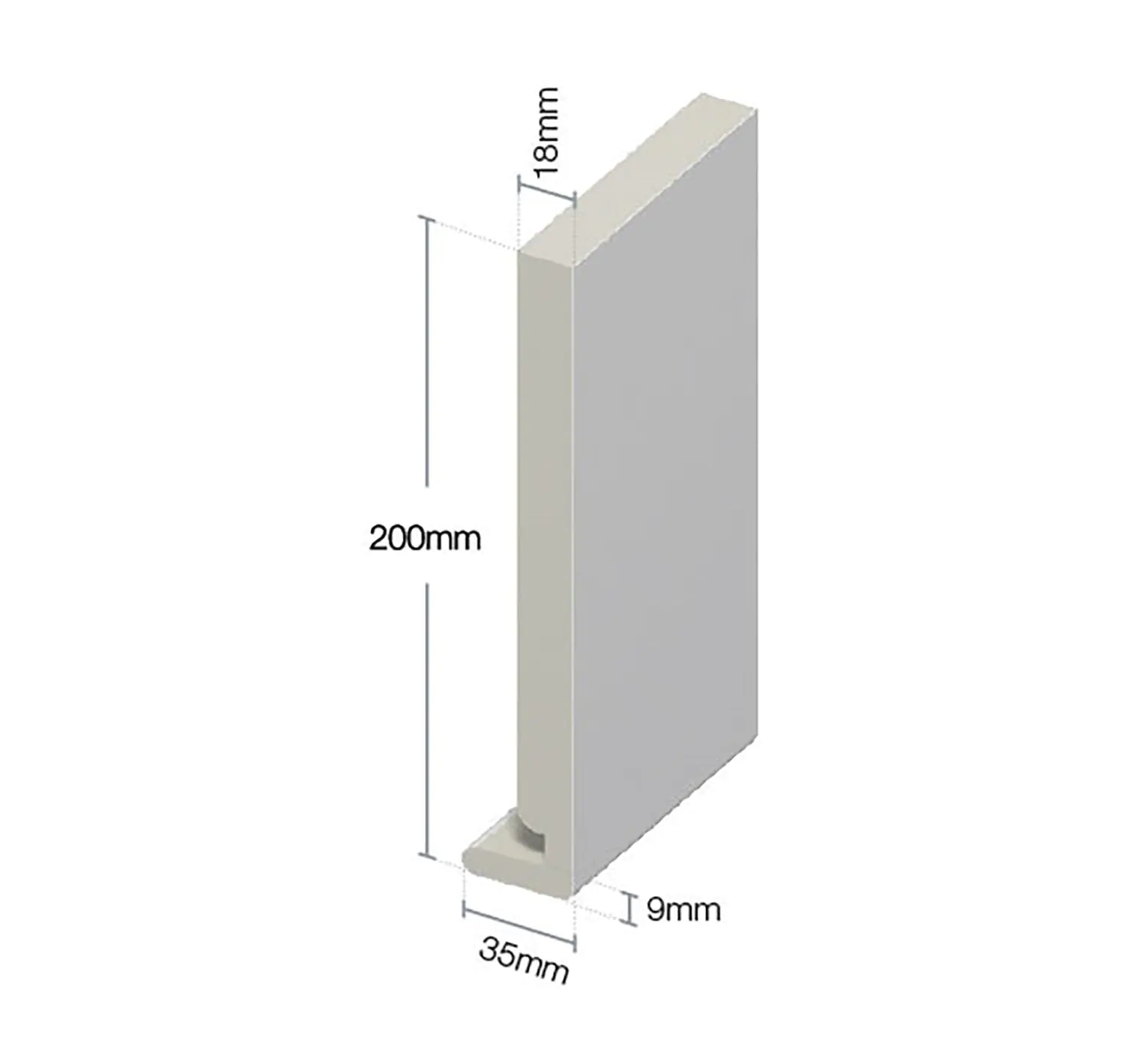

Fascia boards have a return leg — usually around 9–10mm depending on the system.

So that 150mm board doesn’t actually cover 150mm.

👉 it covers closer to 140–141mm

That’s where the gaps come from, or where you end up trying to make something fit that never quite will.

Here’s what that looks like in real terms:

Board Size	Actual Coverage (approx.)
150mm	~140–141mm
175mm	~165–166mm
200mm	~190–191mm
225mm	~215–216mm

Most installers don’t sit there calculating it.

They just know:

👉 you always lose a bit on the return

So instead of ordering exactly what you measured… you go up a size and move on.

Soffit is a bit more forgiving, but it still gets measured wrong.

You’re not measuring to the front of the fascia. You’re measuring from the wall to the underside of it.

And you’ve got to think about how it actually fits:

It slots into the fascia.It may sit slightly onto the brickwork.

Miss that, and you’re either short… or forcing it in.

Once you understand how it all fits together, the rest starts to make more sense.

Soffit isn’t just fixed up wherever it lands.

One side sits into a J trim along the wall. The other edge slots into the fascia return.

So if you’ve got a full run…

👉 you need a full run of J trim to match it

Simple — but easy to forget when ordering.

Joint trims are another one that catch people out.

They come in 5 metre lengths, but you cut them down to suit your soffit width.

So if your soffit is 200mm:

👉 one length gives you around 25 joints

Yet people still buy them one per joint.

You don’t need to.

There’s also another way of installing hollow soffit that’s worth knowing.

Instead of running it across the soffit, you can run it back towards the wall, ribs facing in.

It’s not quicker — there’s more cutting involved — but it often gives a cleaner finish.

If your soffit depth is 200mm and you’re using a 5m hollow soffit board:

👉 you’ll get 25 sections👉 each section is 300mm wide

So you’re effectively covering:

👉 around 7.5 metres of soffit run from one board

It’s not that you’re getting more material.

You’re just using it differently.

And because it’s tongue and groove:

👉 it all slots together cleanly, with no need for joint trims

It also sounds more work than it actually is.

If you’ve got a chop saw set up, it’s just repeat cuts. And lifting smaller sections into place is often easier than wrestling full-length boards.

So yes — more cutting.

But not necessarily more hassle.

Board lengths make a bigger difference than people think.

You’ll see shorter boards from general merchants, and full 5m lengths from specialist suppliers.

Shorter boards mean more joints, more trims, and more chances for movement.

Longer boards just go on cleaner.

Foiled boards are where real-world installs and manufacturer guidance don’t always line up.

Most installers will run them in full lengths.

It looks better. Fewer joints.

And most of the time…

👉 you won’t have an issue

But manufacturers usually recommend shorter lengths — around 2.5 metres — because foiled boards expand more.

If that movement isn’t allowed for properly, boards can push against each other and trims can move.

And if it does go wrong…

👉 it’s unlikely to be covered if it wasn’t installed to spec

Fixings don’t need overthinking, but they do need getting right.

Capping boards use 30mm or 40mm pins. Full replacement boards use 50mm or 65mm nails.

Fascia is fixed at each rafter, roughly every 600mm, with two fixings per point.

Soffit is a bit different.

If it’s sitting properly in a J trim and into the fascia return…

👉 it’s already well supported

You’re not relying on loads of visible fixings to hold it up.

If you’re running hollow soffit back to the wall, you can fix through the tongue.

Then the next board covers it.

👉 clean finish, hidden fixings

There are a couple of small things that make a big difference to how the job turns out.

Mark your fixing points before you go up the ladder.

Trying to space everything out neatly while you’re up there never works as well as you think it will.

You can also lightly tap your pins or nails into position on the ground before lifting the board up.

Then when you’re in place, you’re just finishing them off.

It’s a simple trick, but it makes everything neater.

Joints and corners are another one where people cause problems without realising it.

Some installers pin everything solid.

It works… but it doesn’t allow anything to move.

A better approach is to fix trims to one board only using silicone or MS polymer, and let the other side move.

That way you’re not building pressure into the system.

When jobs go wrong, it’s rarely because someone couldn’t measure.

It’s the small things:

Not allowing for the return leg. Forgetting trims. Fixing things too tight. Not allowing for movement.

Get those right…

and you’ll only order once, and it’ll go on clean.
